ESD Wrist Strap Tester Price And Quantity
Minimum Order Quantity 1 Piece
Payment Terms Cheque Telegraphic Transfer (T/T) Cash on Delivery (COD) Cash Against Delivery (CAD)
Supply Ability as per order Per Month
Delivery Time as per order Week
Sample Available Yes
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details cartons boxes
Main Export Market(s) Western Europe Middle East Eastern Europe Central America North America Australia Africa South America Asia
Main Domestic Market All India
ESD Wrist Strap Tester Trade Information

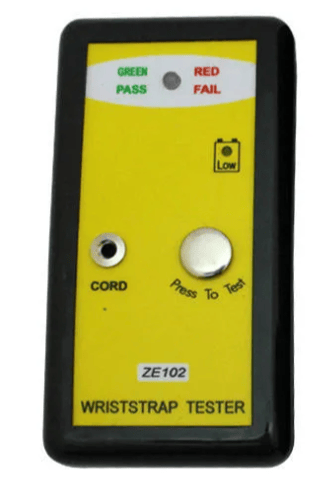

Product Description
Wrist Straps are the first line of defence against electrostatic charges build up on the human body. They are designed to carry away this charge as soon as it is generated. At the same time the strap must remain electrically safe for the user. Thus, it is important to test every strap regularly.
In order to protect sensitive electronic components the maximum strap resistance should not be more than 10 meg ohms. On the other hand, the path to ground should have atleast 750 kiloohm resistance, as protection to the wearer from dangerous voltages and levels of current flow.
The wrist strap tester checks these parameters under actual operating conditions with the strap on the wrist. It clearly indicates whether or not the resistance of the strap system including the wearer falls within acceptable limits.
SPECIFICATIONS :
Pass Band : 0.75 Megohms to 10 Megohms.
Indications : Pass - Green LED
Fail - RED LEDs (High & Low)
Audible Alarm for Fail mode.
Actuation : By Press to ON switch
Accuracy : +10%.
Power supply : 9 V volts
battery Dimensions : 135 x 70 x 25 mm
Weight : 100 gms
Calibration : Recommended every 12 months.
Traceability : To national standards
Warranty : One year.
